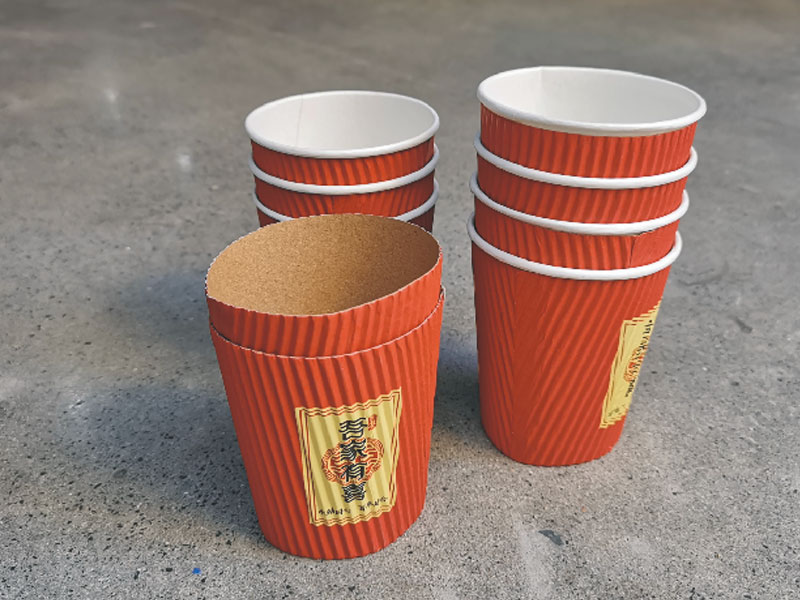

JC-WTJ-150 open type cam ultrasonic sticking machine operates through cam transmission, mainly for paper cups. The paper bowl is covered with another layer of paper to provide better insulation and cold resistance. Has stability, speed, Requirements for precision and quality, smooth operation of various processes such as paper suction, cup flipping, and cup topping, with fast recognition Don??t solve the problem and other advantages.
| Model | JC-WTJ-150 |
| Paper Cup sizes | 1.5-16OZ |
| Paper Cup Forming Size |
（B）: 小于70 mm （T）: 小于100 mm （H) : 小于120mm |
| Upper Mouth Diameter | ＜100mm |
| Cup Bottom Diameter | ＜70mm |
| Forming Height | ＜120mm |
| Machine Speed | 80-110pcs/min |
| Machine Net Weight | 2600kg |
| Power Supply | 380V 50Hz-60Hz 3Phase |
| Work Energy Consumption | 7Kw / H |
| Machine Size | 2500*900*1950mm |
| Paper Grams | 170-300gsm gray /white board paper |
| Working Air Pressure | 0.6-0.7Mpa , 0.6 m3/minute |
